Media Wall and Floating TV Console Installation in Santa Clarita

Santa Clarita TV Mounting covers media wall installation for Santa Clarita great rooms: a wall-mounted TV with concealed cabling, a floating console lagged into studs to carry real weight, LED bias lighting behind the panel, and every source device and cable hidden in the console or an adjacent closet.

See typical prices Typically from $299
(661) 424-7700 Voicemail

Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.

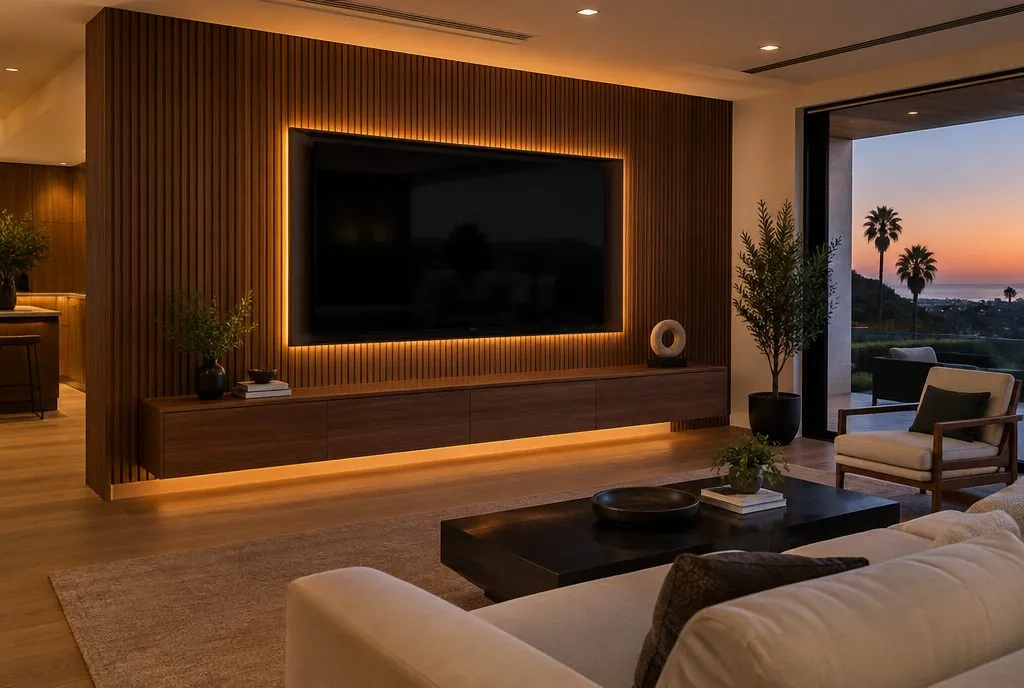

Finished media wall with recessed TV, floating console and LED backlight in a Santa Clarita great room

Media Wall & Floating Console Installation in Santa Clarita, CA typically runs $99–$389 per TV in our 2027 estimator, depending on the TV size and the wall type. Use the estimator below for your own numbers.

What counts as a media wall

A media wall treats the TV, console, lighting and wiring as one designed surface instead of a TV hung over furniture. Typical SCV versions: a 75–85 inch TV flush over a floating wood or lacquer console; a slat-wood or shiplap feature wall with the TV centered; a drywall recess that lets the TV sit nearly flush; or a fireplace-plus-TV wall with built-in cabinets either side. The installer handles the TV, console and lighting and coordinates with the homeowner's carpenter or drywall contractor on recesses and feature cladding.

A media wall is decided at the framing stage, long before the TV leaves its box.

Floating consoles done safely

Hidden French cleat or steel brackets into studs

A console holding a receiver, console and soundbar can weigh 150+ lbs loaded. The cleat or bracket is lagged into at least two studs and leveled to the TV above.

Cable pass-through

Grommets in the console back line up with an in-wall plate so the TV's cables drop straight into the cabinet, invisible from the room.

Ventilation

Receivers and game consoles need airflow; a gap stays behind the console, or a quiet fan goes in where the cabinet is closed.

Lighting and finishing touches

Dimmable LED bias lighting (6500K for accurate color, or warm white to match the room) on the back of the TV or the recess, powered from the same hidden outlet. Flush wall plates color-matched. Equipment labeled. Remotes consolidated with a Harmony-style or Sofabaton universal.

Working with your contractor

If the wall is being framed or clad, the installer gives the carpenter blocking locations, outlet positions and conduit routes before drywall goes up so the finished wall has backing exactly where the TV and console will hang.

Element What it needs from the wall When to plan it
TV mount Blocking or two studs at bracket height Before drywall
Floating console Blocking along the full cleat line Before drywall
TV recess Framed opening sized to the TV plus mount depth Framing stage, by the carpenter
Recessed outlet behind the TV Electrician-installed box at the TV location Rough electrical
Low-voltage conduit 1.5–2 in conduit from TV to console Framing stage
LED bias lighting Power at the TV location After the TV is mounted

Conduit is the part that keeps the wall useful when equipment changes.

Media Wall & Floating Console Installation — common questions

Can the TV be recessed into the wall?

A drywall recess is a framing job for a contractor; the installer sizes it, places blocking and outlet locations, and mounts the TV flush once it's finished.
