TV Mounting on Metal Studs and Walls Without Studs in Santa Clarita
Santa Clarita TV Mounting covers TV mounting in Santa Clarita condos, townhomes and apartments built with steel studs, and on walls where the studs are not where the TV needs to go — rated toggle anchors, snap toggles and concealed backer plates instead of lag bolts.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
TV Mounting on Metal Studs & Drywall Without Studs in Santa Clarita, CA typically runs $119–$389 per TV in our 2027 estimator, depending on the TV size and the wall type. Use the estimator below for your own numbers.
The problem with steel studs
Light-gauge steel studs (25–20 gauge) are common in multi-family buildings in Valencia, Newhall and the newer Vista Canyon and Five Knolls developments. A lag bolt strips the thin steel and holds nothing. The correct hardware is a toggle that opens behind the stud flange — Snaptoggle BA/BB or heavy-duty spring toggles — rated 100–240 lbs each in 1/2–5/8 inch drywall plus steel.
Options when there is no stud where you want the TV
Toggle anchors in drywall
For TVs up to roughly 65 inches / 70 lbs on a fixed or tilting bracket, four rated toggles in 5/8 drywall exceed the load with margin. Not for full-motion arms.
Concealed backer plate
A 3/4-inch plywood or steel plate lagged into the nearest two studs, with the TV bracket bolted to the plate wherever you want the screen. The plate is painted to match and sits behind the TV.
Shift the TV to the studs
Sometimes moving the screen 4–8 inches lands on framing and nobody notices — the installer shows the options with a laser line before drilling.

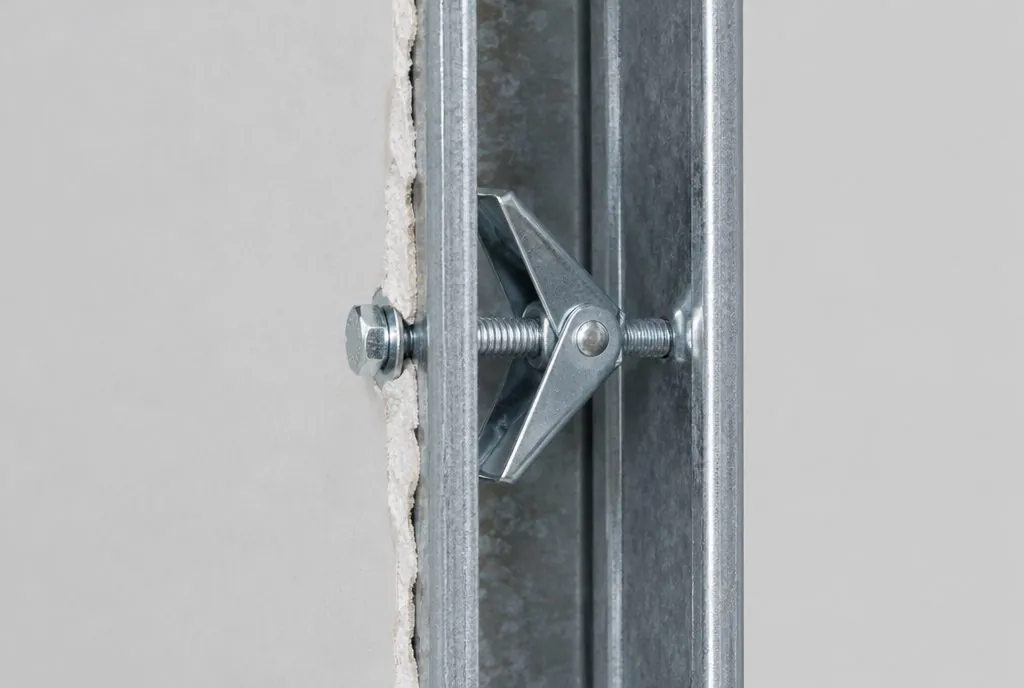

What the callout markers point to
- The wings open flat against the back of the drywall, so the load spreads over a wide area instead of one hole.
- Rated toggles hold far more than plastic plugs or self-drilling anchors, which are never used for a TV.
- A stud is still preferred when one is in reach; toggles are the engineered fallback.
The load math behind the hardware choice
TV weight + bracket weight × safety factor of 1.5 for fixed and tilting, 2.5 for articulating arms (because extension multiplies pull-out force). Toggle ratings are taken at 1/4 of the ultimate pull-out, per manufacturer data. If the numbers do not work, the honest answer is a backer plate.
| Wall situation | Hardware | Load notes |
|---|---|---|
| Steel studs, fixed or tilting bracket | Snaptoggle-type toggles through the stud flange | Per-anchor rating checked against TV + bracket × 1.5 |
| Steel studs, full-motion arm | Plywood or steel backer plate across studs | Extension multiplies pull-out; toggles alone are not enough |
| Wood studs, but not where the TV goes | Backer plate, or a mount with a wide sliding plate | The load still ends up in framing |
| Plaster and lath, no stud at the spot | Toggles rated for the plaster thickness, or a backer | Plaster can crumble; pilot holes and slow drilling |
| 1/2 in drywall instead of 5/8 in | Same toggles at a lower rating | Ratings come from the maker's table for that thickness |
Buildings and HOAs
Many SCV condo HOAs have rules about penetrations in shared walls and fire-rated assemblies. A careful installer avoids party walls where possible, does not penetrate fire blocking for cable fishing, and keeps the install within the unit's own drywall.
When the numbers do not work on drywall alone, the fix is more structure, not more anchors.
TV Mounting on Metal Studs & Drywall Without Studs — common questions
Is it safe to mount a 75-inch TV on drywall anchors?
On a fixed bracket with heavy-duty toggles in 5/8 drywall, yes with margin; on a full-motion arm, no — a backer plate goes in first.
TV Mounting on Metal Studs & Drywall Without Studs: check availability and price range
Bookings aren't open yet — tell us about the TV and the wall. You get a Santa Clarita price range on the next screen. Typical Santa Clarita Valley prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
