TV Mounting on Brick, Stone and Concrete in Santa Clarita

Santa Clarita TV Mounting covers TV mounting on brick, stone veneer, cinder block and poured concrete walls across Santa Clarita — hammer-drilled sleeve and wedge anchors, dust extraction and a bracket plate shimmed level against the uneven face.

See typical prices Typically from $149
(661) 424-7700 Voicemail

Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.

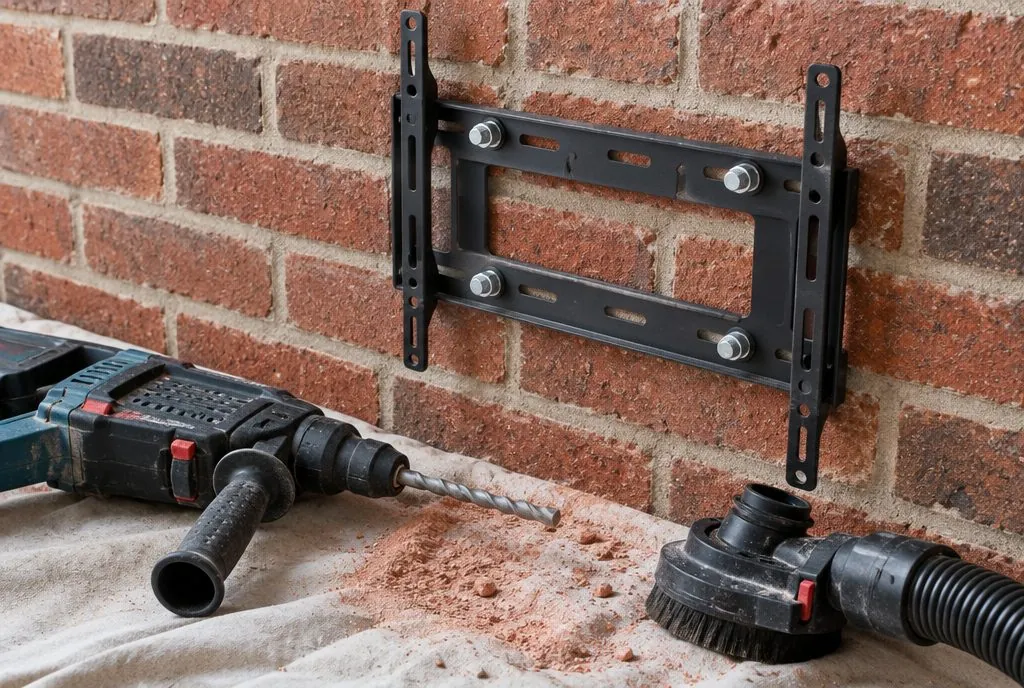

Wedge anchors installed into a brick wall for a TV mount bracket in a Santa Clarita home

TV Mounting on Brick, Stone & Concrete in Santa Clarita, CA typically runs $149–$389 per TV in our 2027 estimator, depending on the TV size and the wall type. Use the estimator below for your own numbers.

Why masonry mounting is a different job

There are no studs to find — the wall is the structure — but the anchoring has to be done right. Brick body (not mortar) and poured concrete take sleeve or wedge anchors rated for hundreds of pounds; mortar joints and hollow block need toggle-style masonry anchors or epoxy. Stone veneer is a thin decorative layer over framing or block, so the fastener must reach the structure behind it. Using the self-tapping masonry screws that come in the box with a TV mount is how brick-mounted TVs end up on the floor.

On masonry, the anchor does the job the stud does on drywall.

Anchor types by wall material

Solid brick and poured concrete

3/8-inch wedge anchors or sleeve anchors, 2.5–3 inches deep, placed in the brick body. Hammer drill with a carbide bit; holes blown out and vacuumed before the anchor goes in.

Hollow block (CMU)

Toggle-style masonry anchors that open inside the cell, or sleeve anchors placed in the solid webs. The installer taps to locate webs before drilling.

Stone veneer and cultured stone

Long structural screws or lag bolts through the veneer into the stud or block behind; the plate is shimmed with stainless washers so it sits level on the irregular face.

Tile over backer board

Diamond bits at low speed through the tile, then anchors into the backer and studs; holes placed where the plate hides any chip-out.

Diagram: cross-section of a brick wall with a TV bracket plate held by two sleeve anchors expanded inside the bricks, one shown in cutaway
Sleeve anchors in solid brick. On brick the plate is held by sleeve anchors that expand inside the solid brick, not in the mortar joints.

What the callout markers point to

  • The cutaway shows the sleeve expanding as the bolt is tightened, locking into the brick.
  • Mortar is softer and crumbles, so anchors go into the body of the brick.
  • The same hardware carries over to concrete block and poured concrete with the right drill bit.

Dust control and finish

Hammer drilling masonry makes fine red or gray dust that stains carpet and hearths. A careful installer drills with a vacuum shroud, drop-cloths the hearth and floor, and wipes the wall before the bracket goes on. Visible raceway on masonry is painted to match the brick or mortar color.

Wall material Anchor type Drill bit
Solid brick 3/8 in sleeve or wedge anchor in the brick body Carbide hammer bit sized to the anchor
Poured concrete Wedge anchor Carbide hammer bit, hole blown clean
Hollow block (CMU) Masonry toggle in the cell or sleeve anchor in a solid web Carbide bit, light hammer action to avoid blowing out the back
Stone veneer Lag or structural screw through to studs or block Masonry bit through the veneer, then a wood or masonry bit behind
Tile over backer Lags into studs or anchors into backer Diamond tile bit, no hammer mode

Tapping the surface first tells a lot: solid brick rings dull and even, hollow block sounds empty between webs, and veneer often sounds different stone to stone.

Where masonry TV walls turn up in the SCV

Brick fireplaces in 1970s–80s Saugus and Canyon Country ranch homes, river-rock surrounds in Sand Canyon, poured-concrete garage gyms in Valencia, block walls in Castaic workshops and barns, and stone-veneer accent walls in newer Stevenson Ranch and Five Knolls builds.

TV Mounting on Brick, Stone & Concrete — common questions

Can wires be hidden on a brick wall?

There is no cavity, so a slim paintable raceway runs along the surround edge or the mortar line. If the brick is a veneer over a framed wall, the installer can sometimes go through to the cavity behind it.
