Santa Clarita TV Mounting: Project example: a 75-inch TV on a media wall with a floating console, hidden wiring and an LED glow — what it looks like and what it costs

The scenario

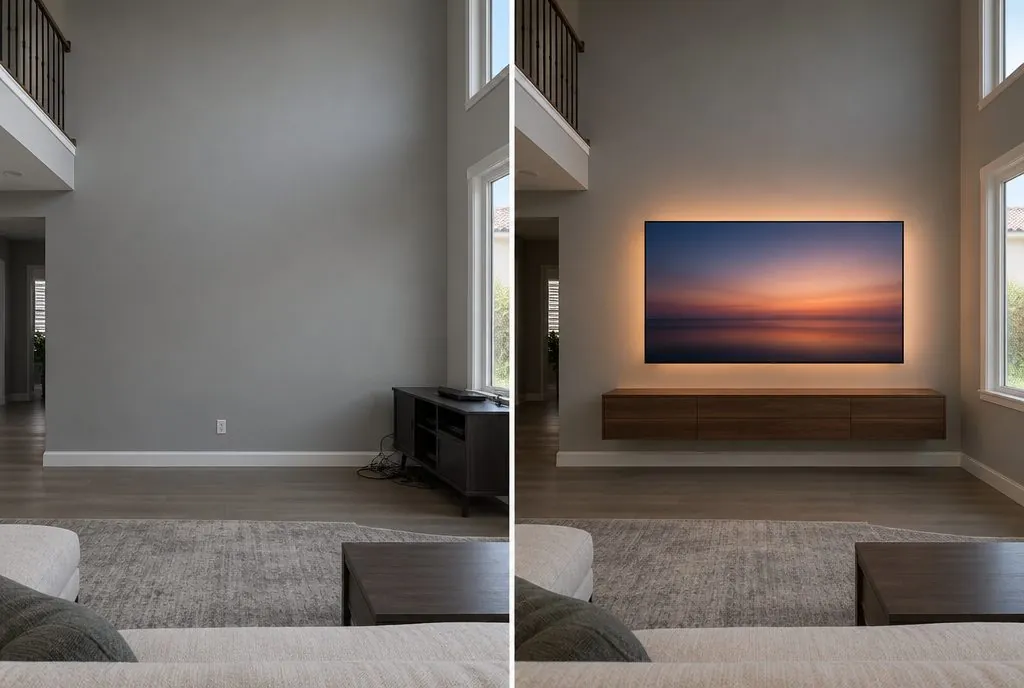

The room is the family room of a two-story stucco home in one of Castaic's tract neighborhoods: a 9-foot ceiling, a feature wall of gray-painted drywall on 16-inch wood studs with nothing on it but a duplex outlet near the floor, and a bulky legged TV stand that the household wants gone. The sectional faces the wall from 11 feet. The media stand holds a streaming box, a game console and a tangle of power bricks.

The brief is a proper media wall: a 75-inch TV mounted low on a slim fixed bracket, a 72-inch floating console hung on the wall beneath it with no legs, the game console and streaming box inside the floating console with their cables invisible, and an LED strip behind the TV that throws a warm glow on the wall for evening viewing. The job combines three things most people think of separately — a TV mount, a furniture install and in-wall wiring — and the order matters: the console is anchored first, because its weight plus the gear inside it is carried entirely by the wall.

What the job involves

1. The installer maps the studs across the whole feature wall and lays out both the TV plate and the console's hanging rail so each lands on at least two studs, with the console's top at about 18 inches and the TV's bottom edge 8 inches above it.
2. The console's steel hanging rail is leveled and lag-bolted into three studs, the console is lifted onto the rail and locked, and the installer sits on it to confirm it carries a person's weight before any electronics go in.
3. Two drywall openings are cut: one behind the TV within the bracket's footprint and one inside the back of the floating console; a borescope confirms the stud bay between them is clear.
4. An in-wall rated power kit links the outlet behind the console to a recessed outlet behind the TV, and two CL2-rated HDMI leads plus the LED strip's low-voltage lead are fished up the stud bay with a fish tape and fitted with low-voltage plates.
5. The low-profile mount is lag-bolted into two studs, the dimmable LED strip is stuck to the back of the panel in a rectangle an inch in from the edge with its controller taped out of sight, and the TV is hung and locked.
6. The streaming box and game console go into the floating console with their power bricks on a surge strip plugged in behind it, every HDMI input is tested, the LED is dimmed to a warm setting, and the drywall dust is vacuumed from the console and floor.

Hardware and materials

• Low-profile fixed wall mount rated for 70–85 inch panels, lag-bolted into two studs
• Floating console with a steel hanging rail rated for the console plus its contents, three lag bolts into studs
• In-wall rated recessed power kit; two 10-foot CL2 HDMI leads; two low-voltage brackets and brush plates
• Dimmable bias-light LED strip with a remote controller and a 3-foot low-voltage lead
• Fish tape, borescope, drywall saw, laser level and a dust vacuum; surge-protected power strip inside the console

Add-ons often paired with this job

• Mount a soundbar as well — +$49–$79. A soundbar on a bracket under the TV completes the wall; its power and HDMI share the in-wall path to the console.
• Take down an existing TV first — +$40–$89. The old TV comes off its stand rather than a wall, so there is usually no dismount line — unless a bracket from an earlier owner is on the wall and has to come down and be patched.
• I need the mount supplied — +$40–$120. The low-profile mount is supplied by the installer when the one on hand has too deep a profile for the console's clearance.

Why it is done this way

A media wall looks effortless only when every element is carried by the framing: the console is a shelf full of electronics hanging from a rail, and a 75-inch panel above it is a serious load on its own, so both are lag-bolted into studs and nothing rests on drywall anchors. Anchoring the console first and sitting on it is the test that matters; a floating console that sags later is impossible to fix without opening the wall.

In-wall concealment is what turns a TV over a cabinet into a media wall, and the rated power kit keeps it legal: no extension cord ever runs inside the cavity. The LED bias light is a small addition with a large effect — it lowers the contrast between a bright screen and a dark wall, which makes evening viewing easier on the eyes, and the warm glow is what makes the console look like it floats.

What would change the price

• The console comes from a flat-pack with its own rail — assembly is a separate line from the mount, and a rail without a weight rating is replaced before anything is hung.
• An 85-inch or larger panel — the base rate moves up a tier and the bracket spans three studs.
• Fire-blocking or a plumbing run sits between the two openings — the cable path shifts to a neighboring stud bay or a side wall.
• No outlet on the feature wall — a licensed electrician adds one before the in-wall power kit can be fitted.
• Wood slats or a stone veneer are planned for the feature wall — mounting goes in before the finish, and the finish trade coordinates with the installer.
