Santa Clarita TV Mounting: Project example: an 85-inch weather-rated TV on a covered-patio stucco wall — what it looks like and what it costs

The scenario

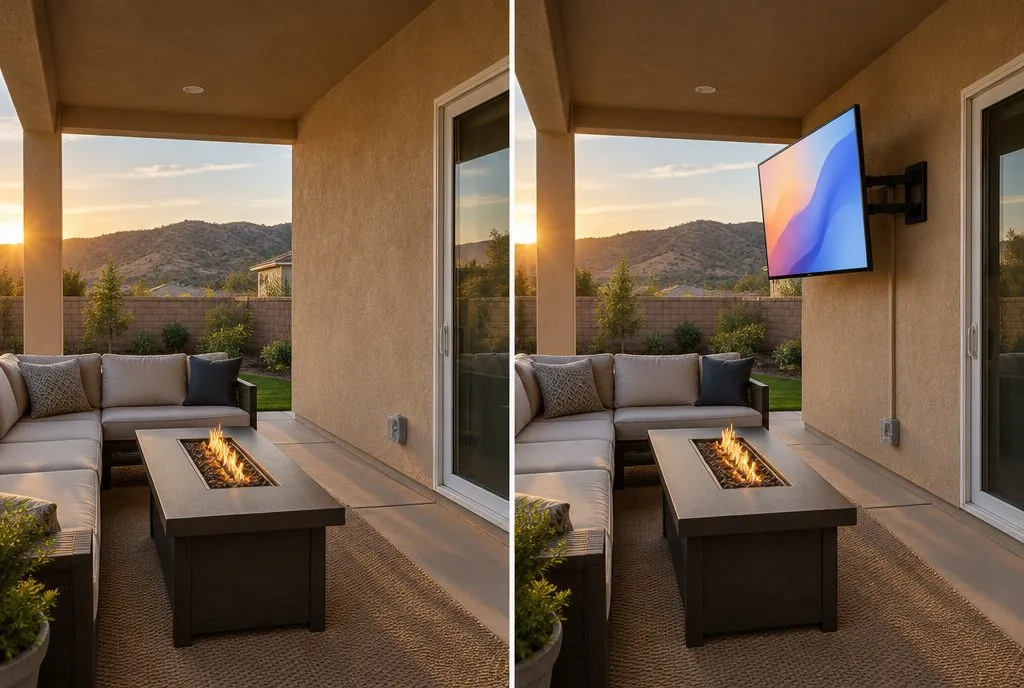

The setting is the backyard of a two-story stucco home of the kind that fills Stevenson Ranch: a solid-roofed patio cover off the family room, a tan stucco house wall facing west toward the Santa Susana foothills, a sliding glass door, and a weatherproof GFCI outlet with a bubble cover low on the wall beside the door. The patio seating is an outdoor sectional about 12 feet from the wall, and the fire table sits between them. From roughly three in the afternoon the sun comes in under the edge of the cover and lands on the wall where a screen would hang.

The brief is an 85-inch outdoor-rated TV on that wall, watchable from the sectional on a summer evening and from the pool side of the yard when there is a crowd, with no cables trailing across the stucco. Two things shape the job. First, the wall is stucco over wood framing: the stucco and its lath are a finish, not a structure, so the mount has to reach the studs or blocking behind. Second, the sun: an outdoor panel is built for brightness and heat, but a full-motion arm lets the screen be swung and tilted out of the direct glare instead of fighting it.

What the job involves

1. The installer confirms the panel is a true outdoor model — sealed, rated for the valley's summer heat — and checks the patio cover's overhang to make sure the mounting spot stays out of direct rain, which is the condition most outdoor TV warranties attach to.
2. The wall framing is located through the stucco with a deep-scan stud finder and verified with a small test hole in a spot the plate will cover; a full-motion arm concentrates the load on its narrow plate, so two studs are the target, with a plywood backer added if only one is reachable.
3. The viewing position is set from the sectional and the pool: the screen center is marked for a seated eye line from 12 feet, and the arm's reach is checked so the TV can be swung toward the pool without the arm hitting the patio post.
4. The plate is leveled and lag-bolted through the stucco and lath into the studs with long structural screws, each hole sealed with exterior sealant around the fastener to keep water out of the wall; the plate is pull-tested before the arm goes on.
5. A UV-stable exterior raceway is screwed to the stucco straight down from the plate to the outlet, the outdoor-rated power cord and an outdoor HDMI lead are laid in it, and the raceway is painted the same tan as the house.
6. The arm and TV are hung and locked, the arm is swung and tilted to the sunset position and back to the flat parked position, the HDMI is tested with the streaming device, and the stucco dust is rinsed off the patio.

Hardware and materials

• Full-motion articulating mount rated for 70–90 inch outdoor panels, with a corrosion-resistant finish
• Structural lag screws long enough to pass through 7/8-inch stucco and lath into the studs; exterior-grade sealant
• Deep-scan stud finder, laser level, masonry-capable drill bit for the stucco scratch coat
• UV-stable exterior cable raceway with matching paint, outdoor-rated HDMI cable and the TV's own outdoor power cord
• Optional 3/4-inch exterior plywood backer, primed and painted, when framing is only reachable at one stud

Add-ons often paired with this job

• Mount a soundbar as well — +$49–$79. An outdoor-rated soundbar under the screen is common on a patio because the open air swallows the TV's own speakers; it shares the raceway.
• I need the mount supplied — +$40–$120. Outdoor panels need a mount rated for their weight and the elements; if none has been bought, the installer supplies one.
• Take down an existing TV first — +$40–$89. An indoor TV being retired to the patio is a mistake installers talk people out of — but taking the old one down from its indoor wall is a separate line.

Why it is done this way

Stucco is the wall type that catches people out: it feels solid, but a mount screwed only into the stucco and lath will pull loose with the first swing of an arm. Reaching the framing with long structural screws, and sealing every penetration against the next storm, is what makes an outdoor mount last. A full-motion arm is chosen over a fixed mount because the patio has two viewing positions and a low afternoon sun; the screen is parked flat against the house when not in use and swung out when it is.

The outdoor rating of the panel itself is the other half of the job. A standard living-room TV under a patio cover in a Stevenson Ranch summer will cook, and its warranty will not help. An outdoor model carries its own brightness and heat tolerance, so the installer's job is mainly to keep it out of direct rain and pointed away from glare.

What would change the price

• The outlet is on the far side of the patio or inside the house — a longer raceway, or a new exterior outlet by a licensed electrician, changes the cable line.
• Framing is only reachable at one stud at the chosen spot — a painted plywood backer across two studs is added for the arm's cantilever load.
• The patio cover is an open lattice rather than a solid roof — the TV may need a weather enclosure or a different spot, which is a different job.
• A 65-inch screen instead of an 85 — the base rate drops a size tier and a lighter arm is used.
• The wall is a block or concrete patio wall rather than stucco over framing — masonry anchors replace the lag screws and the wall surcharge changes.
