Santa Clarita TV Mounting: Project example: a 65-inch TV on a full-motion arm that swings from the family room toward the kitchen — what it looks like and what it costs

The scenario

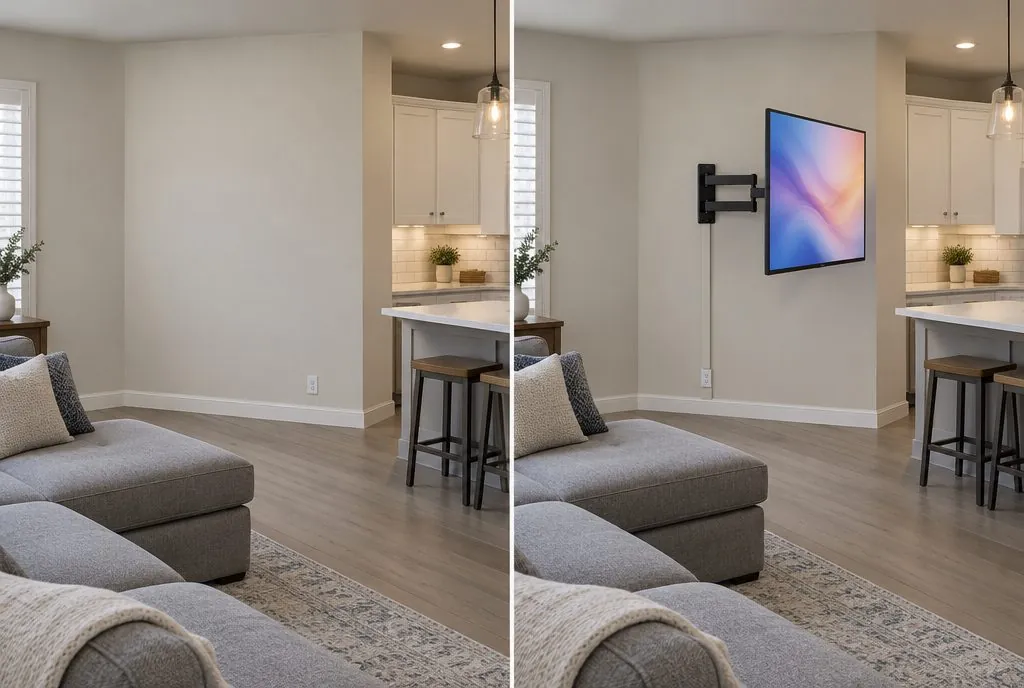

The room is the open-plan heart of a two-story Canyon Country home of the type built in the 2000s near the Fair Oaks Ranch side of town: a family room with a 9-foot ceiling flowing into a kitchen with an island, separated by nothing but a change in flooring. The sectional faces the long wall of the family room; the island sits 15 feet away at an angle of almost ninety degrees to that wall. The wall is standard drywall over wood studs at 16 inches, and there is a duplex outlet at baseboard height near the corner.

The brief is one 65-inch TV that serves both spaces: straight-on from the sectional for a film, and swung toward the island so a game can be followed from the stove. A fixed mount would serve only the sofa. A full-motion mount with a long dual-arm reach does both, but it changes the engineering of the job: a 65-inch panel held two feet off the wall is a cantilever, and all of its leverage lands on the bracket's wall plate and the studs behind it. The wall plate has to be on two studs, the arm's swing path has to clear the corner, and the cables have to move with the arm without snagging.

What the job involves

1. The installer measures the sight lines from both positions — the sectional and the island — and marks the one spot on the wall from which an arm with a 24-inch reach can face each of them, allowing for the corner the arm has to swing around.
2. Two adjacent studs are located and confirmed with pilot holes; the long-reach mount's wall plate spans 16 inches by design, and both of its columns of lag bolts have to be in framing because of the cantilever load.
3. The plate is leveled and lag-bolted with six bolts into the two studs, then loaded by hand at the extended position of the arm to confirm there is no flex in the wall before the TV is involved.
4. The TV's VESA plate is fitted while the panel rests on padding, the arm is attached to the wall plate, and the panel is hung and locked with the arm's safety screws.
5. The arm is swung through its full travel: parked flat, straight out, swung toward the island, tilted down for the island's standing eye line; stops are set so the corner of the TV cannot reach the wall or the kitchen cabinet.
6. The power cord and an HDMI lead are routed through the arm's integrated cable channels with slack for the full swing, dropped to the outlet in a slim raceway, and the tension and level are fine-tuned so the panel sits level in every position.

Hardware and materials

• Dual-arm full-motion mount with a 24-inch extension, rated for 50–75 inch panels and at least 1.5 times the TV's weight
• Six lag bolts into two studs; laser level and stud finder with AC detection
• Right-angle HDMI adapter and a high-speed HDMI lead with 3 feet of slack for the swing
• Short paintable raceway from the parked arm position to the baseboard outlet
• Torque driver for the arm's tension screws; padded blanket for the panel during VESA fitting

Add-ons often paired with this job

• Mount a soundbar as well — +$49–$79. A soundbar can ride on the TV with an arm-mounted bracket so it swings with the screen, instead of staying fixed to the wall and pointing the wrong way.
• I need the mount supplied — +$40–$120. Long-reach arms are a specific product; when the bracket on hand is a short single arm, the installer supplies the right one.
• Take down an existing TV first — +$40–$89. The TV usually comes off a fixed mount on the same wall first, and the old plate holes are patched.

Why it is done this way

A full-motion arm is the right tool when one screen has to serve two rooms, and the corner position is what makes a single TV work for both the sectional and the island. The cost of that flexibility is leverage: the same 65-inch panel that a fixed bracket holds an inch off the wall is, at full reach, a 40-pound weight two feet out on a lever. That is why the plate goes on two studs with six bolts, why the wall is loaded before the TV goes on, and why plastic anchors never come near this kind of job.

Setting the swing stops is the step most people skip, and it is what keeps the TV's corner off the wall and the cabinet over years of swinging. Cables routed through the arm's own channels with real slack are the difference between a mount that moves freely and one that unplugs itself the first time it is swung.

What would change the price

• Only one stud reachable at the ideal spot — a painted plywood or steel backer plate across two studs is added so the arm's load is spread.
• A 75-inch panel on the long arm — the base rate moves up a tier and the mount model changes to one rated for the heavier cantilever.
• In-wall concealment instead of the raceway — possible with an in-wall rated kit and a loop of slack behind the arm, priced as its own line.
• An outlet on a different wall — the raceway run lengthens, or an electrician adds an outlet near the mount.
• The corner is an exterior wall with insulation — fishing is harder but lag-bolting into the studs is unaffected.
